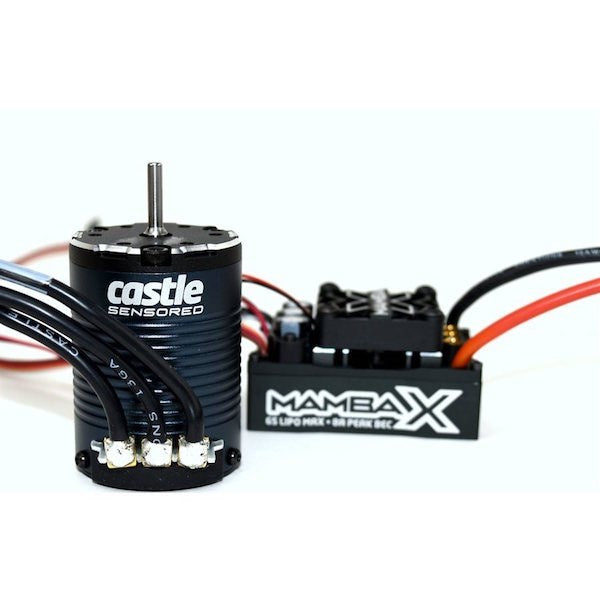

Castle Creations CSE010015508 Mamba X 25.2V WP ESC + 1406-1900kV Sensored Combo
Castle Creations CSE010015508 Mamba X 25.2V WP ESC + 1406-1900kV Sensored Combo
ESC SPECIFICATIONS
Input Voltage Range: 2S-6S LiPo (4S max with included 19000kV motor)
BEC Specifications: Adjustable: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V
Operating Environment: Waterproof design allows for use in nearly any environment
Brake: Proportional
Reversible: Yes, but may be disabled for racing.
On/Off Switch: Yes
Cooling Fan: Yes, factory equipped (30mm), fully removable
Length: 2.14" (54.4mm)
Width: 1.39" (35.2mm)
Height: 1.18" (30.0mm)
Weight (with wires): 3.56 oz. (101g)
Connectors: 4.0mm female bullets for motor connection
Items Needed for Operation: Battery Connector required
MOTOR SPECIFICATIONS
Input Voltage Range: 2S-4S LiPo
kV: 1900
Max. RPM: 100,000
Length: 49.5mm
Diameter: 36mm
Weight (w/wires): 197g/6.9oz
Shaft Length: 15mm
Shaft Diameter: 1/8" (3.17mm)
Mounting Hole Specifications: M3 @ 25mm
Cooling Fan: Optional - Coming Soon
Connectors: 4mm male Castle Bullet Connectors attached to replaceable 13 gauge wire; includes 210mm length sensored wire
OTHER SPECIFICATIONS
Waterproof: Yes
Telemetry Capable: Yes
Data Logging: Yes
Auxiliary Wire: Yes
Minimum Input Voltage: 2S
Maximum Input Voltage: 3S
Sensored Capable: Yes
Recon G6 Certified ESC: Yes
ROAR Certified ESC: Yes
OVERVIEW
The Mamba X Crawler edition is our latest offering for the crawling crowd. We have taken our new 1406 low kV crawler motors and paired it with the high power, ultra reliable Mamba X ESC. This combo is ideal for low speed crawling or trail running in vehicles weighing up to 9lbs on 2s; it can also be used in more aggressive setups like rock racing and extended hill climbing on vehicles up to 5lbs. It can also be used in 2WD buggies, stadium trucks and 4WD touring cars; equivalent in RPM output to approximately a 10.5 turn. Your ESC will come with our new V2.02 firmware that has been enhanced for rock crawling and sensored operation.
If you're looking for a higher torque motor for rock racing, hill climbing or hardcore trail running you will want to use the larger, higher torque and power rated 1410 - 3800kv motor. This motor is shorter and will run hotter and have less torque in heavier 4WD applications.
