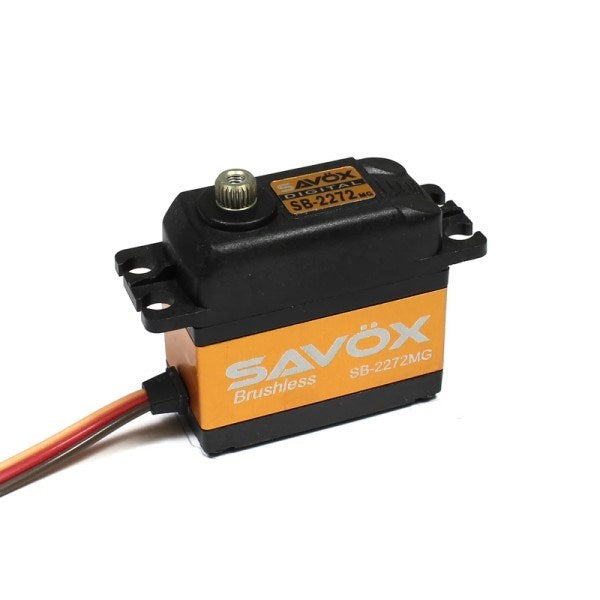

Savox SB-2272MG Digital HV Brushless Servo 69g, 7kg-cm, 0.035sec/60 deg (7.4V)

by Savox
$169.95
SKU SAV-SB-2272MG

Savox SB-2272MG Digital HV Brushless Servo 69g, 7kg-cm, 0.035sec/60 deg (7.4V)

DESCRIPTION
The Savox SB-2272MG High Voltage Brushless Digital Servo combines leading edge technology with super high 12 bit (4096) resolution.

FEATURES
- Leading edge digital servo technology
- High efficiency brushless motor
- Accurate and fast response
- Super high resolution
- Aluminium center case for improved motor cooling and total strength
- Ball bearings
- Precision metal gears

TECHNICAL SPECIFICATIONS
Servo Technology: Digital High Voltage
Input Voltage: 6.0 - 7.4V
Servo Type/Size: Standard
Motor Type: Brushless motor
Gear Material: Metal Gears
Ball Bearings: Yes
Servo Case: Aluminium - composite
Speed @7.4V: 0.035sec/60deg
Torque @7.4V: 7.0kg-cm

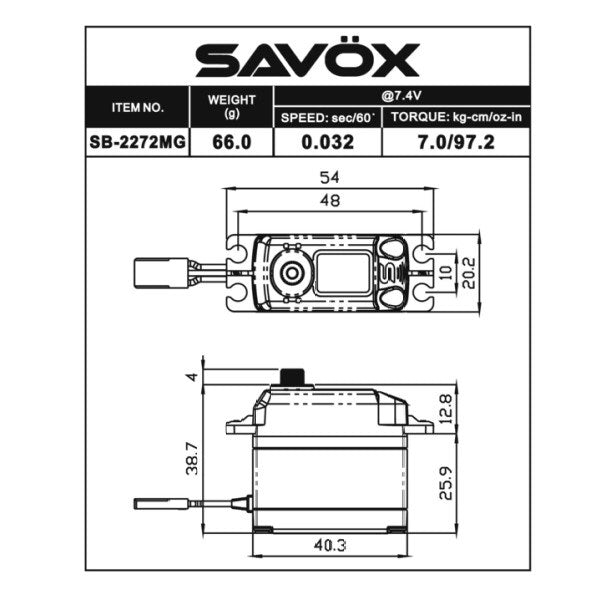

Length (mm): 40.3
Width (mm): 20.2
Height (mm): 38.5
Weight (g): 69
Connector Type: JR
Spline Size: 25T Spline

SPARE PARTS
SGSB2272MG Top and Bottom Servo Case with Screws for SB-2272MG
CSB2272MG Servo (Metal) Gear Set with Bearings for SB-2272MG
