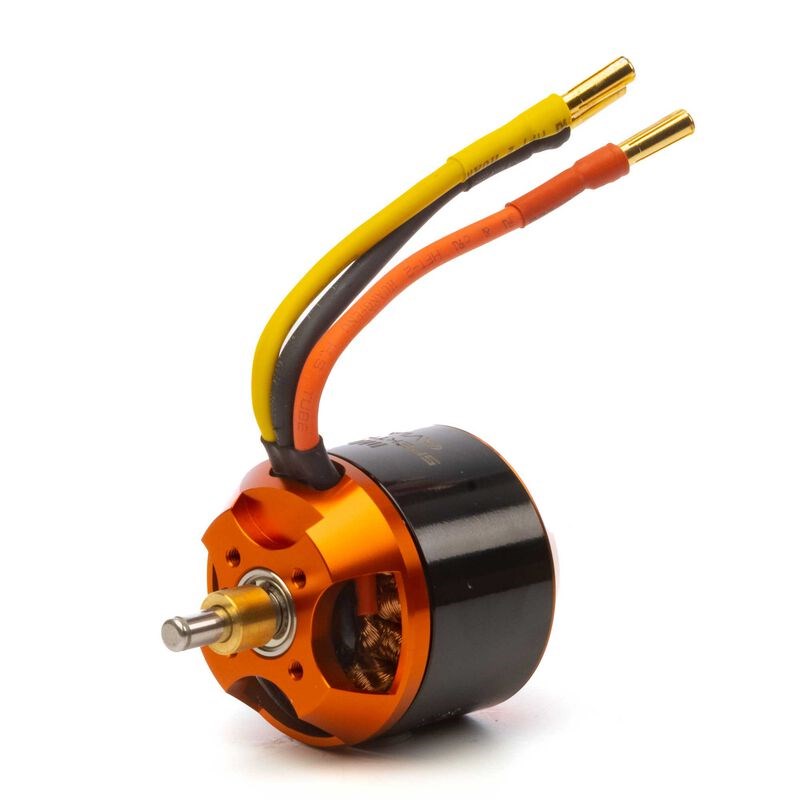

Spektrum SPMXAM4700 Avian 4250-800Kv Outrunner Brushless Motor
by Spektrum
SKU SPMXAM4700
Original price
$174.95
-
Original price
$174.95
Original price
$174.95
$174.95
-
$174.95
Current price
$174.95
Product Inventory
loading..
loading..
Take to the Skies with Spektrum Avian Brushless Motors for Fixed-wing Models
The combination of superior performance, high reliability and user-friendly features makes the Spektrum Avian Brushless Motors an excellent choice for your next aircraft project. Plus, the wide selection means there's Avian Brushless motor that's ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models!
Key Benefits
Rapid Acceleration and Extreme Torque: Expertly engineered to deliver fast, smooth and precise acceleration and power.
Reliable and Virtually Maintenance-free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors.
Excellent Cooling: Engineered to help airflow move through the motor for efficient cooling during and after flight.
Key Features:
Lightweight design
Powerful and durable Rare-Earth Neodymium magnets
14-pole stator for smooth and precise propulsion
Includes all required hardware: preinstalled gold plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors
Perfect match for the Spektrum Smart Avian 45 amp ESC
Perfect electric conversion upgrade for .32 size glow combustion power systems
Important Recommendations:
Recommended Voltage Range ? 11.1-14.8V / 3-4S LiPo
Recommended Propeller Range ? 12x6 to 13x8 Electric Prop
Recommended Model Flying weight ? 3D 1845g (4 lbs) - Sport 2950g (6.5 lbs)
Max Wattage ? 600w
Max Current ? Max Burst Amps (50A) Max Continuous Amps (45A)

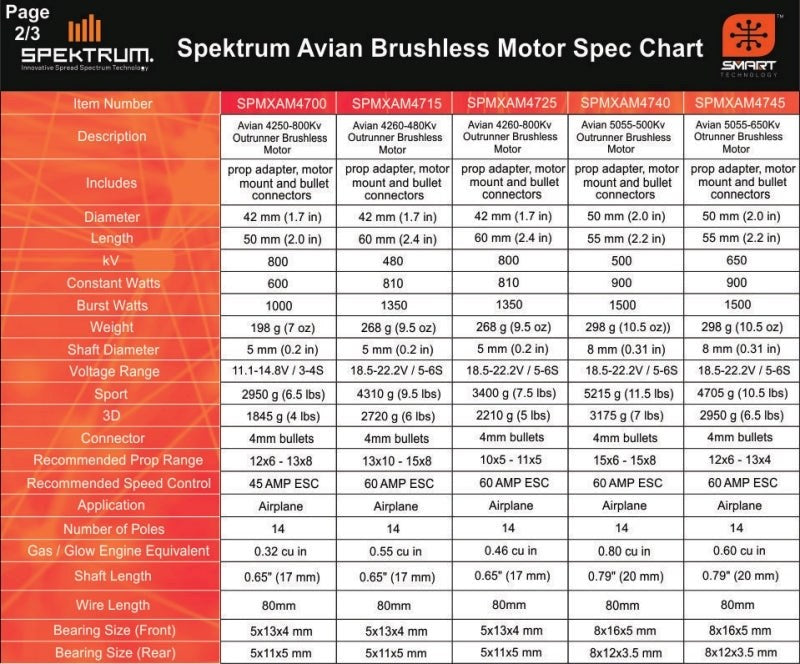

Technical Specifications:
Motor Design
Outrunner
Outer Diameter
1.7" (43 mm)
Connector Type
4mm Bullet
Motor Class
Mid Size
Product Length
2" (51 mm)
Input Voltage
11.1-14.8V (3-4S LiPo)
Kv Rating
750-999Kv
Motor Output Lead
4
RPM/Volt (Kv)
800
Sensor Type
Sensordless
Shaft Length
0.67" (17 mm)
Adjustable Timing
No
Integrated ESC
No
Recommended Prop Range
12x6 - 13x8 electric
Shaft Diameter
0.2" (5 mm)
Application
Sport airplanes up to 6.5lbs (2950g) and 3D airplanes up to 4lbs (1814g)
Product Weight
7oz (198g)
Constant Wattage
500-749W
Maximum Burst Current
1480W
Maximum Continuous Current
925W
Motor Type
Brushless
