Thunder & Flame

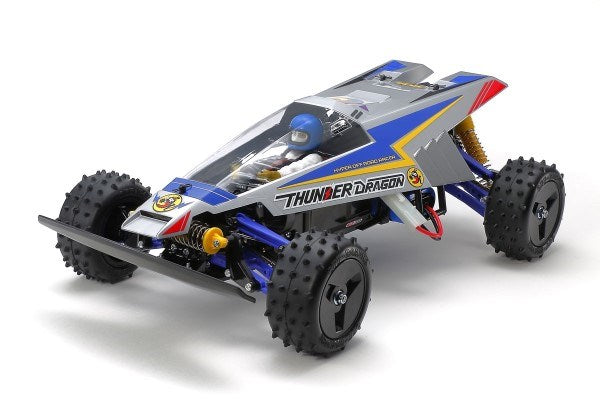

This assembly kit creates an updated re-release version of the classic R/C off-road buggy Thunder Dragon, which appeared in a Japanese cartoon in the 1980s. Its ABS bathtub frame is tough and allows easy maintenance, while 4-wheel double wishbone suspension uses CVA oil dampers and a front stabilizer for a superior ride. Sealed gearboxes front and rear contain differentials with die-cast 3-bevel types for smooth, superior handling feel, and semi-pneumatic spike tires give great grip. The streamlined body is molded in polycarbonate, with non-canopy sections painted in silver. It is pre-cut for convenience.
Tough Shaft-Driven 4WD
The midship motor, shaft-driven 4WD chassis is based around a lightweight and tough monocoque, with 4-wheel independent double wishbone suspension attached to gearboxes: an easy maintenance layout using upper "I" and lower "H" arms. Dual CVA oil dampers at the rear and a single one in the front monoshock setup are joined by a front stabilizer for optimal flex. Gear differential units front and rear are in sealed gearboxes, and an aluminum motor mount further improves reliability.
Key Features:
The chassis is based around an ABS plastic bathtub frame for excellent durability and ease of maintenance
4-wheel double wishbone suspension uses CVA oil shock-dampers and a front stabilizer for a superior ride
Features shaft-driven 4WD with front and rear die-cast 3-bevel differentials for smooth, superior handling feel
Semi-pneumatic spike tyres give great grip and are paired with large-diameter ABS wheels
Thunder Dragon body is moulded in polycarbonate, with non-canopy sections pre-painted in silver. It is pre-cut for convenience
Includes 540 brushed type motor
Required for Operation (Not Included)
2 Channel Radio System
Standard size steering servo
Electronic Speed Controller
7.2V Tamiya style battery and charger for chassis
Building and assembly tools
Front double wishbone suspension utilizes upper "I" arms and lower "H" arms for a ground hugging drive.
A front monoshock setup employs a CVA oil damper and helps limit roll when your buggy is cornering.
A close-up on the aluminum motor mount, which facilitates rigidity and superior heat dissipation.
The double wishbone suspension setup at the rear employs dual CVA oil dampers for a smooth ride.
Dish design wheels help mud and dirt to slide right off, and are paired with grippy spike tires.
Technical Specifications:
Length: 390mm, width: 240mm, height: 130mm. Wheelbase: 260mm
Adjustable Gear Ratio: Fixed
Bearings: Plastic bushing
Body Material: Polycarbonate
Body Stickers: Included
Chassis Material: ABS Plastic
Construction Type: Assembly Kit
Differential Type: Gear
Drive Type: 4WD
Motor: 540-brushed type
Shock Damper: CVA Oil Filled
Suspension: 4-wheel fully independent double wishbone
Terrain Use: Off-Road
