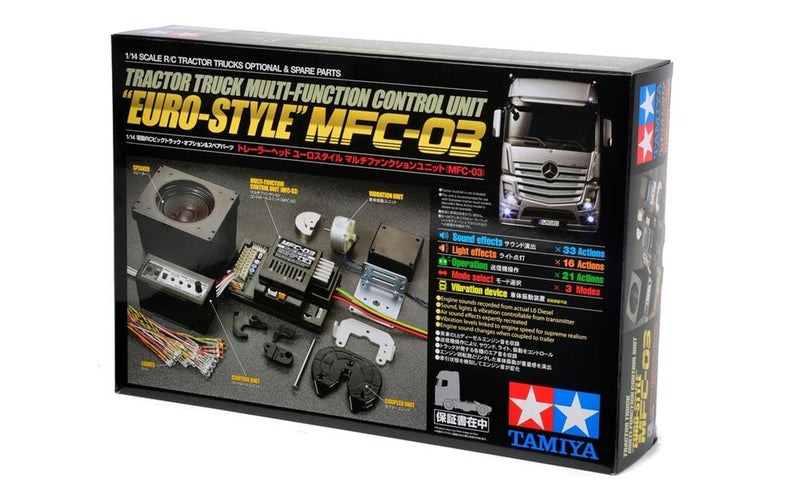

Tamiya 56523 MFC-03 Euro Style Tractor Truck Multi-Function Control Unit
Tamiya 56523 MFC-03 Euro Style Tractor Truck Multi-Function Control Unit
1/14 RC Truck Option Parts Series No. 23
OVERVIEW
This Multi-Function Control Unit brings your 1/14 scale RC tractor to life, with its recreation of highly realistic sounds, lights and vibration, all of which are coordinated by the MFC-03 unit. Engine sounds were digitally recorded from a real L6 diesel engine, currently the most common unit in European trucks: they cover a number of typical truck sounds from engine start-up to idling and a range of sounds to match model speed, replicating rev sounds with excellent quality. Air sounds are also synchronized with truck operation, as are turn signal, horn, coupler connection/separation, brake sound effects and more! A vibration unit provides incredibly realistic shaking. The MFC-03 also acts as a speed controller that enables smooth running at not only high, but also extremely low speeds and when towing separately sold semi-trailers.
LIGHTS
Headlights, Fog lamp, Main beam, Brake lights, Reverse lights, Winkers, Hazard lights, Auxiliary lights, Roof lamps, Speed indicators, Low voltage warning, Demo mode 1: manual illumination, Demo mode 2: slow flashing, Demo mode 3: slow illumination, Demo mode 4: quick illumination
SOUNDS
Ignition, Alarm 1 (pre-heating), Pre-heating, Engine start (successful), Engine start (failed), Idling, Engine sound 1 (towing trailer), Engine sound 2 (without trailer), Engine sound 3 (revving), Engine stop, Up-shifting, Down-shifting, Horn A (low), Horn B (high), Coupler attachment, Coupler detachment, Brakes, Winkers 1, Winkers 2, Hazard lamps 1, Hazard lamps 2, Reverse alarm, Alarm 2 (lights on, engine stopped), Alarm 3 (low electric field intensity), Alarm 4 (speaker check), Air discharging 1 (after engine start), Air discharging 2 (after parking brake is engaged), Air discharging 3 (after returning to neutral), Air discharging 4 (when idling), Air discharging 5 (every 10 secs. while running), Air discharging 6 (after braking), Air discharging 7 (after engine stop), Air discharging 8 (manual)
TRANSMITTER FUNCTIONS
Steering, Winkers, Throttle, Main beam, Horn, Clutch, Engine start, Semi-trailer detachment, Support leg lowering, Support leg raising, Winker mode preparation, Winker cancellation, Gear shifting, Shift change sounds, Lights, Winker/Hazard switching, Horn sound switching, Horn/Support leg switching, Simulated engine stop, Winker sound switching, Definition of gear positions
MODES
Multi Mode (driving, sounds, lights and vibration - the full package!), RC Mode (limited to driving only), Demo Mode (display mode; no driving)
VIBRATION EQUIPMENT
Vibration unit, Vibration unit adjuster
