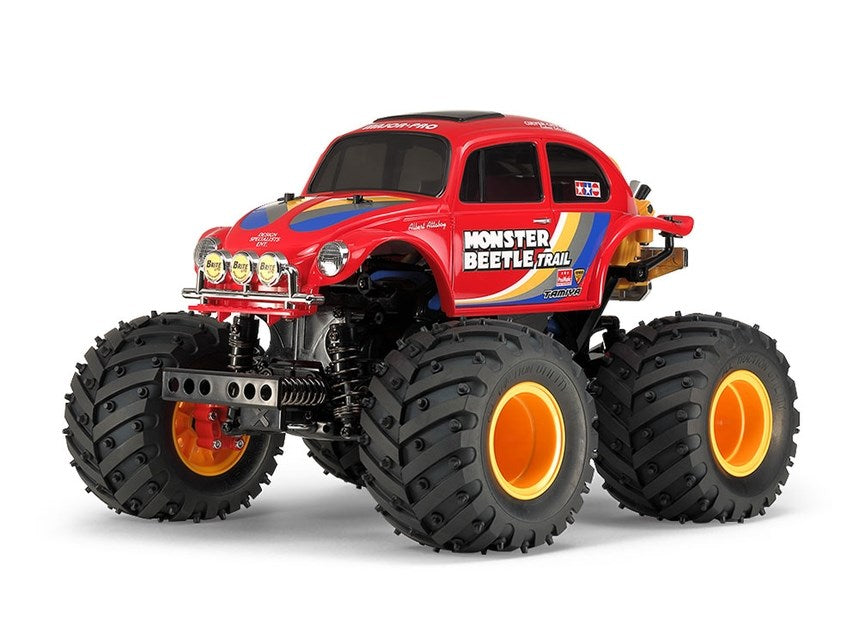

Tamiya 58672 RC Kit: 1/14 4WD Monster Beetle Trail (GF-01TR)

Tamiya 58672 RC Kit: 1/14 4WD Monster Beetle Trail (GF-01TR)

SPECIFICATIONS
Length: 333mm
Width: 270mm
Height: 215mm
Wheelbase: 174mm
Tread: 210mm (Front & Rear)
Tire Width/Diameter: 68/115mm (Front and Rear)
Gear Ratio: 37.35:1 (using kit standard 18T pinion gear)

SEPARATELY REQUIRED ITEMS
- 2-Channel radio system
- Standard steering servo
- 7.2V NiMH battery pack and suitable charger
- Plastic (TS) paints
- Tools for assembly

TRAIL BEETLE
This RC model assembly kit creates a vehicle which offers an excellent off-road drive. Molded in detailed ABS plastic, its racy body is inspired by customized Volkswagen Beetles, and features exaggerated fenders, a simplified rear end, triple auxiliary lights and more. Metal-plated parts recreate headlights, auxiliary lights and the rear depiction of the engine. The GF-01TR chassis provides a dynamic off-road drive.

GF-01TR: AWESOME TRACTION
This gear-driven 4WD chassis is based around a lightweight and tough monocoque frame, with power provided by the centrally-positioned motor. Reduction gears on each axle slow drive shaft rotation for immense traction, great ground clearance, and the ability to take on tough off-road terrain. The gearbox is sealed to protect from dust and debris, and integrated into the frame; built-in differential gears provide superb traction and durability with the use of included diff putty. 4-wheel double wishbone suspension utilizes friction dampers, while a 2-piece tie rod steering setup with the servo on the left gives excellent response. Yellow wheels are fitted with 115mm diameter hybrid pin spike/lug pattern tires for superior cushioning and grip. The chassis utilizes a 'square' setup with similar tread and wheelbase lengths.

FEATURES
- The Monster Beetle Trail offers immense traction that will take it over all kinds of obstacles.
- Molded in ABS plastic, the body offers plenty of detail. Metal-plated parts add another layer of realism.
- The front is adorned with triple auxiliary lamps, which are metal-plated parts with stickers for decoration.
- Depictions of engine and muffler are also metal-plated parts. The body also features a sporty roll bar.
- Use the included putty in the gear differentials to help endow this model with superb traction.
- All wheels have hub reduction units, which slow down drive shaft output for greater torque.
- Monocoque Frame
- 3-Bevel Differential Gears
- 2-Piece Steering Tie-Rod
- 4-Wheel Independent Double Wishbone Suspension
- Type 540 Motor
- TBLE-02S ESC
