Tamiya 58688 1/10 TOYOTA LC 300 (EXCL ESC) CC-02

by Tamiya
SKU TAM58688
Original price $390.95 - Original price $390.95
Original price
$390.95
$390.95 - $390.95
Current price $390.95
Product Inventory
loading..

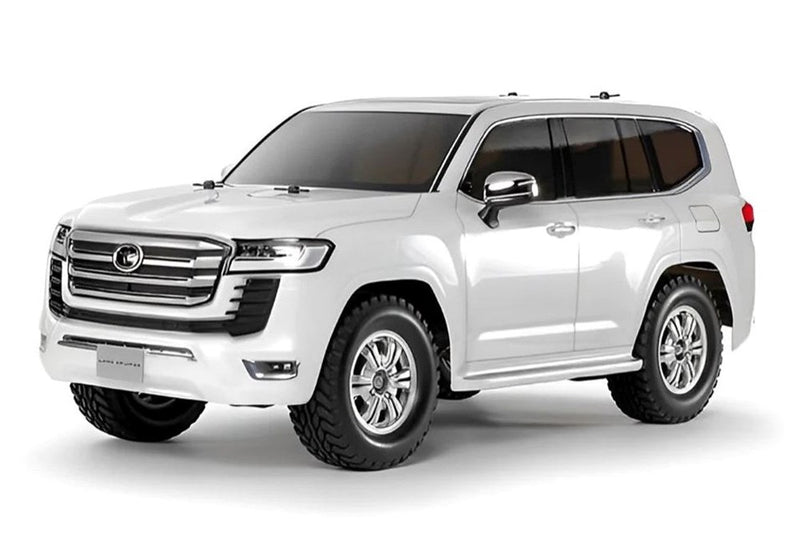

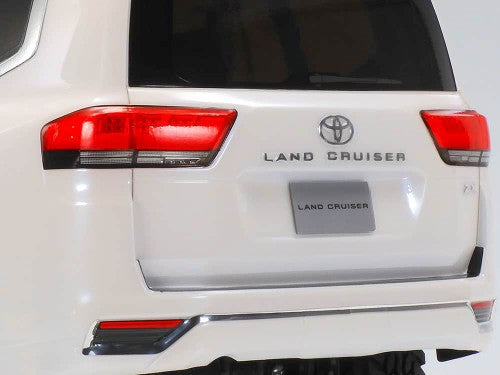

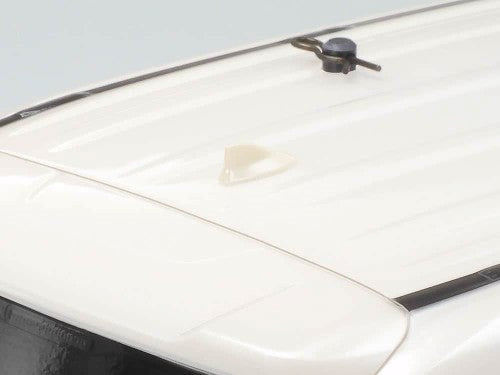

Since the first generation model release in 1951, the Toyota Land Cruiser has been one of the most famous 4WD vehicles in the world. This R/C model assembly kit recreates the Land Cruiser 300 series announced in 2021. The polycarbonate body realistically depicts the eye-catching, dignified form with separate parts to capture the distinctive large front grille?s horizontal fins and metal-plated sections. Light case and door mirror components are metal-plated, and door handles and shark fin antenna on roof are rendered by separate parts for more realism. Silver color 12-spoke wheels are paired with block pattern tires.
Proven CC-02 Chassis
Designed for a wide range of off-road scenes including rocky terrain, the CC-02 chassis? ladder frame is inspired by full-size vehicles and is the base for its superior durability. A 4WD setup employs the motor longitudinally behind the front axle, with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear. 20 gear ratios between 11.09:1 and 29.28:1 are possible. 4-link rigid suspension is employed front and rear, with CVA oil dampers.
Key Features:
The CC-02 chassis is designed for a wide range of off-road driving expeditions and has a ladder frame which was inspired by full-size vehicles.
NEW: Silver color 12-spoke wheels are paired with block pattern tires. (Wide wheels are included to recreate the customized look of this version.)
NEW: New stickers feature integrated tinted window and window frame sections to allow ease of applying stickers and eliminate the need for painting the window tint.
Includes Motor.
What's In The Box?
Toyota Land Crusier 300 CC-02 Assembly Kit
Decal Sheet
Instruction Manual
Required for Operation (Not Included)
2-channel radio & Receiver
Steering servo
Electronic Speed Controller
7.2-7.4volt battery pack Compatible charger
Tamiya PS paint
Tool
Technical Specifications:
Length: 472mm
Width: 200mm
Hheight: 192mm
Wheelbase: 267mm
Tread: 160mm(front), 163mm(rear)
Tire width/diameter: 33/90mm (front & rear)
Ladder-type frame
Shaft-driven 4WD
Front/rear 3-bevel plastic differentials
Front/rear 4-link type suspension
Front/rear CVA oil dampers
Gear ratio =17.33:1 (with kit standard 16T pinion)
RS540 motor
Electronic Speed Controller (ESC) is sold separately.
