Tamiya 58702 RC Kit: 1/10 4WD Subaru BRZ (ZD8) (TT-02)

by Tamiya
SKU TAM58702
Original price $271.95 - Original price $271.95
Original price
$271.95 - $271.95
Current price $271.95

Tamiya 58702 RC Kit: 1/10 4WD Subaru BRZ (ZD8) (TT-02)

NOTE: This is a kit and requires assembly. Some parts are sold separately- see list below.

- Unassembled 1/10 1/10 4WD Subaru BRZ (ZD8) (TT-02) kit with unpainted body
- Body decals
- 540-size brushed motor and paired ESC

- 2-Channel radio system
- Standard steering servo
- 7.2V NiMH battery pack and suitable charger
- Body paint (Tamiya PS spray recommended)
- Tools for assembly

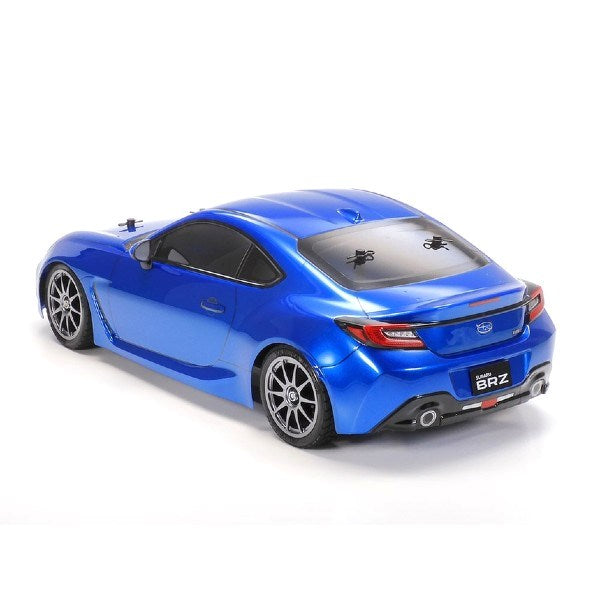

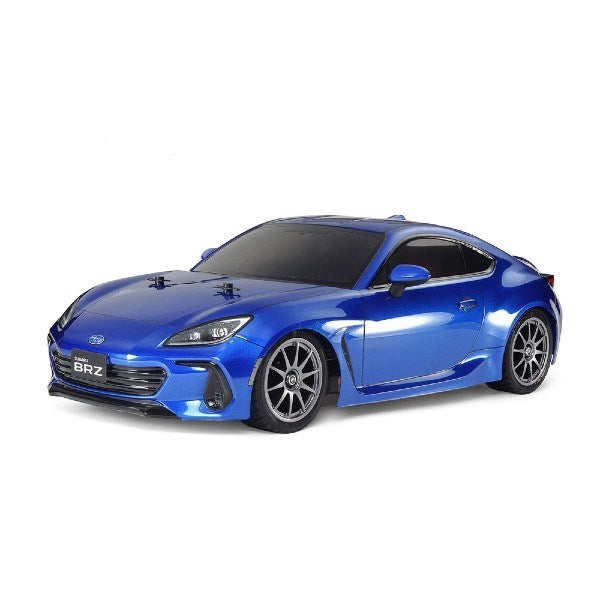

Modern Masterpiece
The BRZ - SUBARU?s first rear-wheel drive sports car, which debuted in 2012 - welcomed a second model in April, 2021 in Japan, which is recreated by this RC model assembly kit. A polycarbonate body recreates the stylish form of the 2-door coupe car in style, with separate polycarbonate parts included for front and rear light cases.

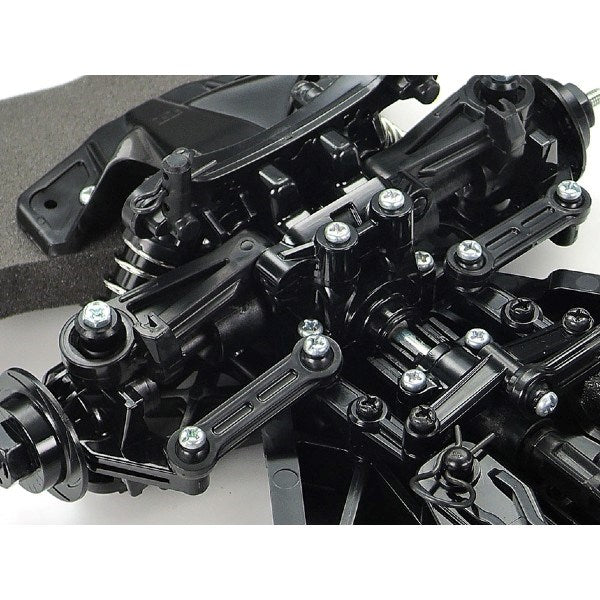

TT-02: Adaptable, Balanced Shaft Driven 4WD
The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Black 10-spoke wheels use tread patterned semi-pneumatic tires.

Length: 426mm
Width: 188mm
Height: 131mm
Wheelbase: 257mm
Tire Width/Diameter: 27/67mm (front and rear)
Adjustable Gear Ratio: Yes
Gear Ratio: 8.27:1
Bearings: Plastic bushings
Body Material: Polycarbonate
Body Stickers: Included
Chassis Material: ABS plastic
Chassis Type: TT-02
Construction Type: Assembly kit
Differential Type: Gear
Drive Type: 4WD
Electronic Speed Control (ESC): Included
Motor: Brushed 540-type
Scale: 1/10
Shock Damper: Friction type
Suspension: Fully independent double wishbone
Terrain Use: On-road
