Traxxas 3019R - EVX-2 Speed Controller with LVD

by Traxxas
SKU TRX3019R
Original price $275.20 - Original price $275.20
Original price
$275.20
$275.20 - $275.20
Current price $275.20

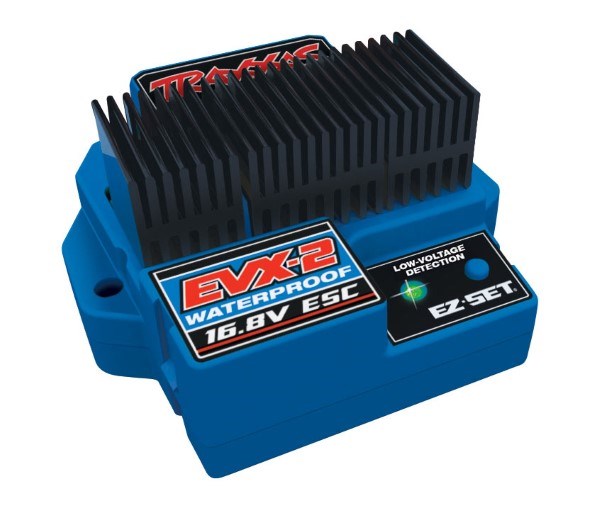

Traxxas 3019R - EVX-2 Speed Controller with LVD

Brand: Traxxas

Part Number: 3019R


The EVX-2 delivers an incredible 16-plus volts, from two battery packs, making 16.8-volt, twin-motor setups more powerful than ever! Designed by Traxxas, the EVX-2 features a completely waterproof design, three drive profiles, Thermal Shutdown Protection, and gold-plated patented Traxxas High-Current Connectors. The EVX-2 also includes patented Training Mode.™ This profile reduces the overall power output of the EVX-2 by 50% making it easier for young/new drivers to develop their control skills before unleashing full-power operation. EVX-2 is equipped with two-stage low voltage detection (LVD) to allow LiPo battery use. The EVX-2 is manufactured by Traxxas to ensure the highest level of quality and support.


EVX-2 Waterproof ESC Features

  • Built-in two-stage low voltage detection (LVD)
    for Lithium Polymer (LiPo) battery use
  • 16.8 Volts of Power
  • Waterproof Design
  • Microprocessor Controlled
  • Traxxas High-Current Connectors*
  • Three Drive Profiles
  • Patented Training Mode
  • EZ-Set® Push-Button Set-Up
  • Thermal Shutdown Protection
  • For Traxxas E-Maxx®, E-Revo® and Summit


EVX-2 LVD (WATERPROOF) SPECIFICATIONS
Input voltage: ­ 6-14 NiCad and NiMH cells (7.2 to 16.8 volts DC)
4-cell LiPo (14.8 volts DC)
Case Size: ­ 2.27"W x 2"D x 1.05"H
Weight: ­ 3.6 ounces
Motor Limit (540 size): ­ 10-turns
Motor Limit (550 size): ­ 12-turns
On-Resistance­ (@Trans)–FWD/REV: ­ 0.004 ohms / 0.004 ohms
Rated Current–FWD/REV: ­ 180 amps / 180 amps
Braking Current: ­ 360 amps
Continuous Current (at 100°F amb.): ­ 30 Amps
Reverse Delay: ­ None
BEC Voltage: ­ 6.0 volts DC
BEC Current: ­ 2.5 amps
Power Wire: ­ 14 Gauge / 3"
Input Harness Wire: ­ 26 Gauge / 9.5"
Motor Wires: ­ 14 Gauge / 4"
Transistor Type: ­ MOSFET
PWM Frequency: ­ 1700 Hz
Thermal Protection: ­ Thermal shutdown
Profile selection: ­ Sport Mode:
100% fwd, 100% brakes, 100% rev.

Race Mode:
100% fwd, 100% brakes, no rev.

Training Mode*:
50% fwd, 100% brakes, 50% rev.
Single-button setup: ­ Yes, Traxxas EZ-Set®
  ­ *Patented


Replacement or upgrade part for these Traxxas models:

39036 - E-Maxx Brushless
