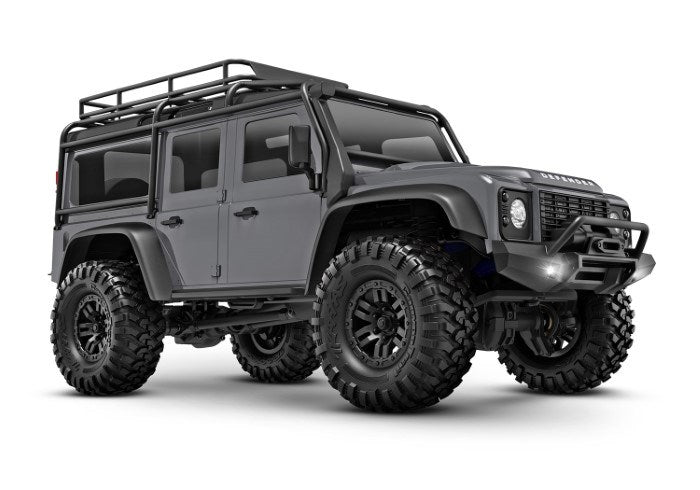

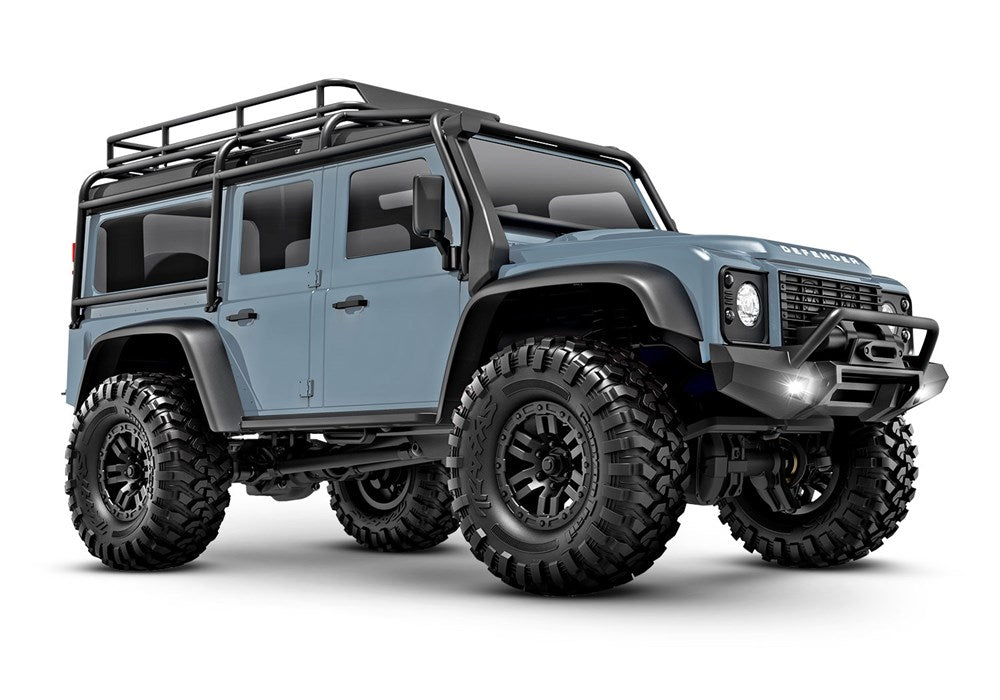

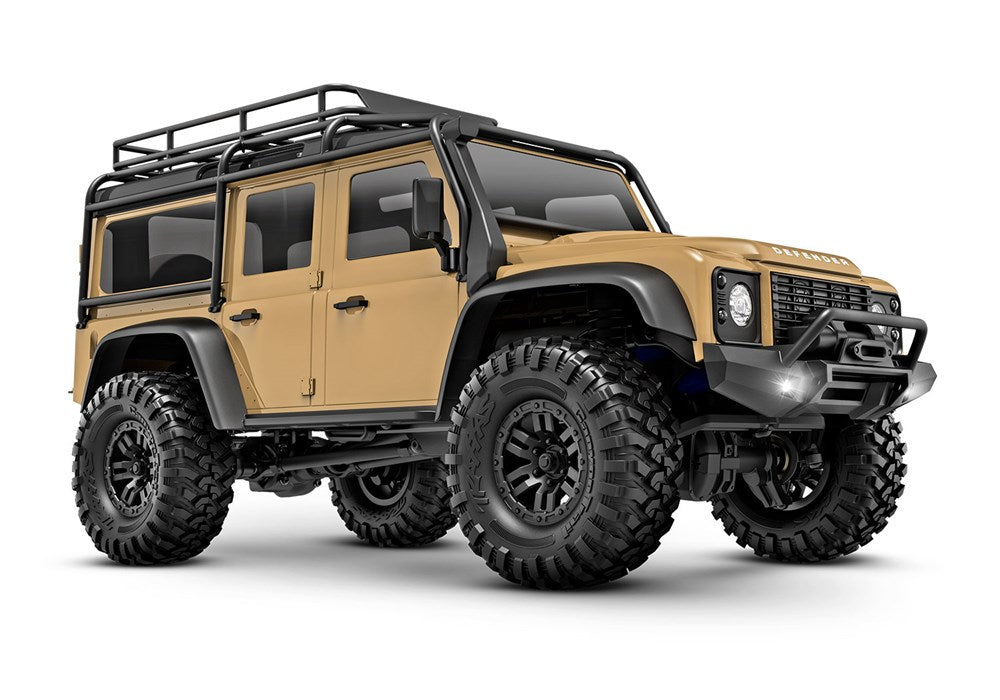

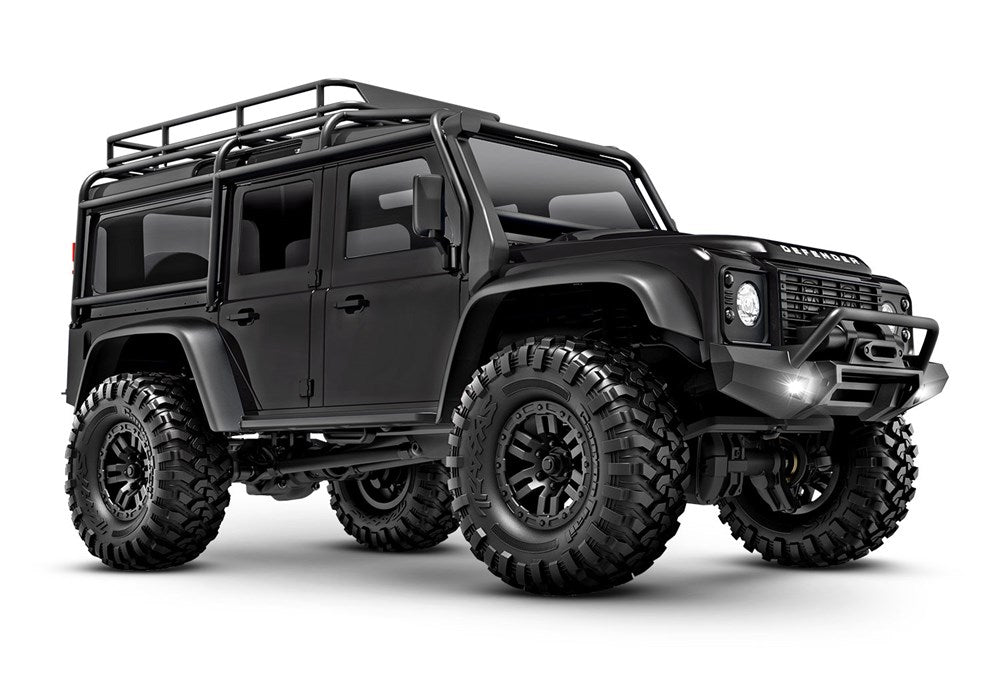

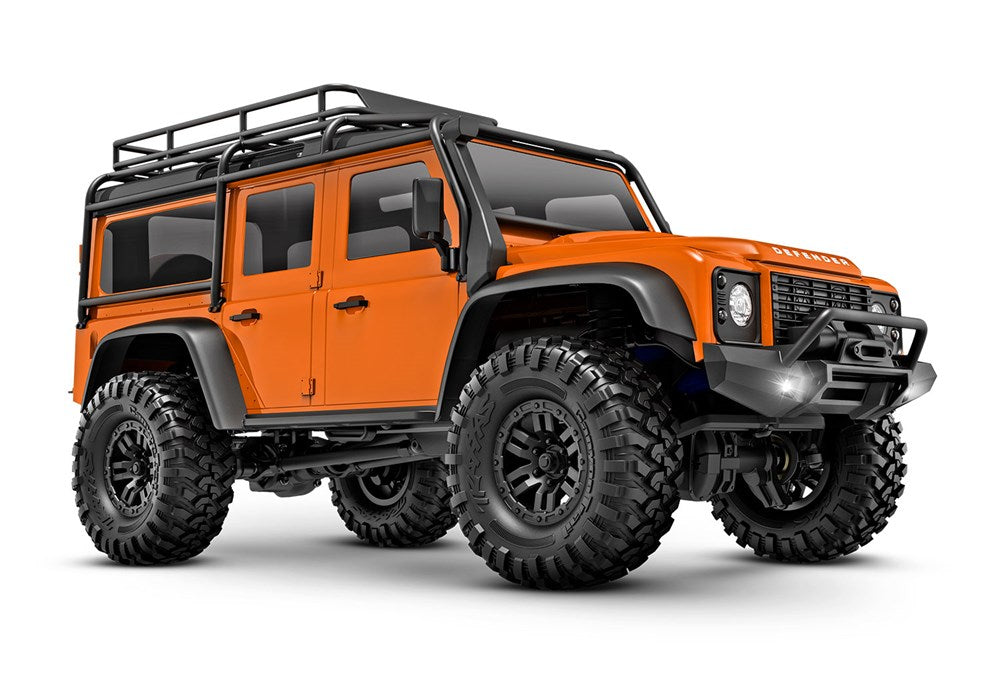

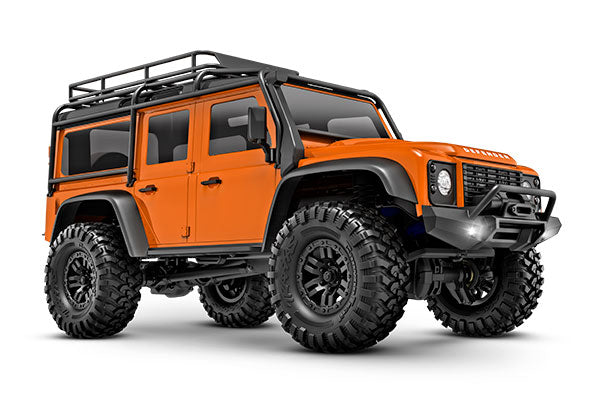

Traxxas 97054-1 TRX-4M 1/18 Scale Defender

Traxxas 97054-1 TRX-4M 1/18 Scale Defender

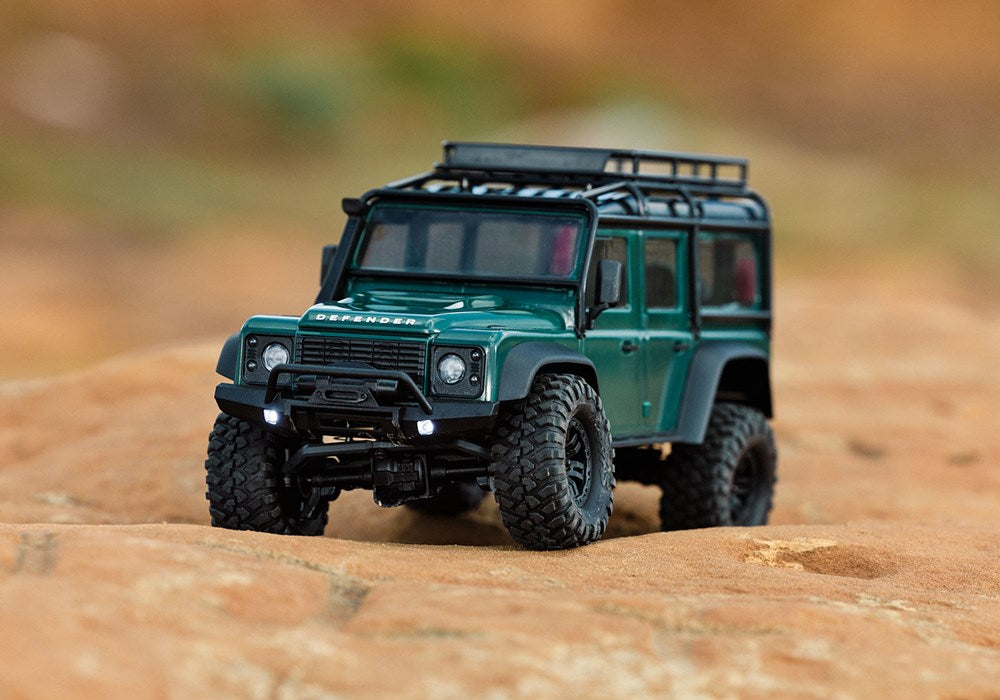

Introducing TRX-4M, a new way to experience all the fun, adventure, and scale realism of the TRX-4 in a 1/18 platform. TRX-4M bridges the gap between the small crawler scene and 1/10 scale quality and performance. Oil-filled shocks, steel frame rails, and a smooth running drivetrain give it true outdoor capability over rocks and through grass and streams. The tight turning radius and precise throttle control give it fantastic indoor maneuverability.

What?s In The Box:
TRX-4M? Ready-To-Race? model
Licensed ABS hard body
Titan? 180 87-turn motor
ECM-2.5? Electronic Control Module
TQ transmitter
7.4 volt 750mAh 2-cell LiPo battery
2-amp USB fast charger with iD?
High quality maintenance tools

What You?ll Need:
Four AA alkaline batteries for the transmitter

A Battery & Charger is included, these are the compatible batteries and chargers:

Compatible Lipo Batteries:

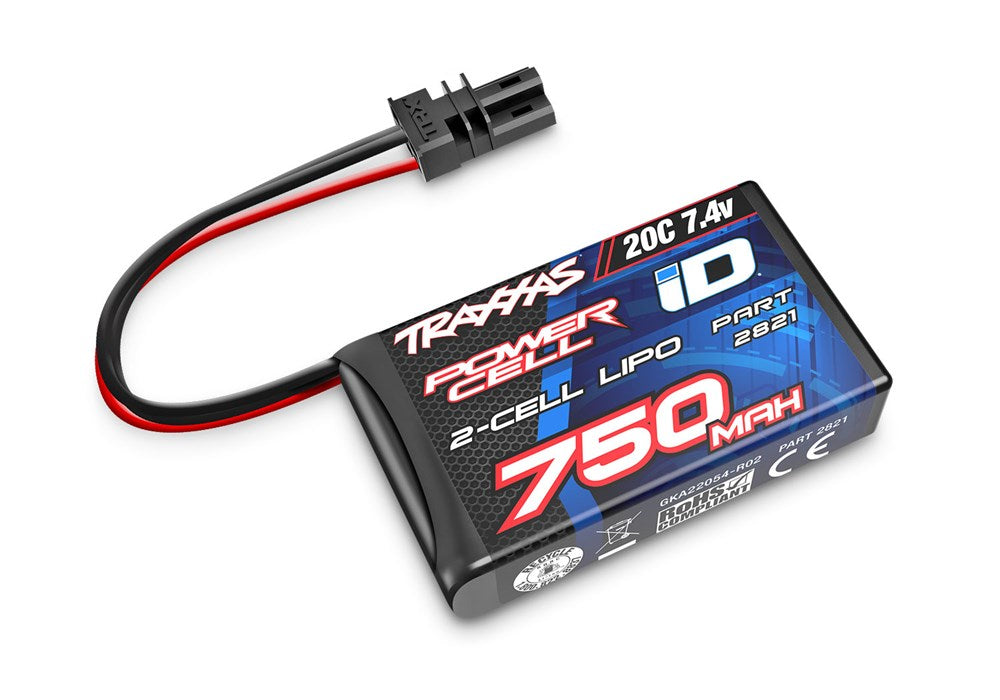

• Traxxas 2821 750mAh 7.4V 2-Cell 20C LiPo Battery

Compatible Nimh Batteries:

Compatible Chargers:

• Traxxas 9767 Charger, iD Balance, USB (2-cell 7.4 volt LiPo with iD connector only)

Completer Packs:

NB: Some batteries may require a battery expansion kit to fit properly.

Length: 10.3 inches (262mm) (Bronco)
              11 inches (279mm) (Defender)
Front Track: 4.9 inches (124mm)
Rear Track: 4.9 inches (124mm)
Ground Clearance: 1.12 inches (29mm)
Weight (w/o battery): 1.03lbs (468g) (Bronco)
                                      1.06lbs (483g) (Defender)
Height: 4.6 inches (117mm) (Bronco)
              5.3 inches (135mm) (Defender)
Wheelbase: 6.10 inches (155mm)
Approach Angle: 54? (Bronco)
                              52? (Defender)
Breakover Angle: 45? (Bronco)
                               45? (Defender)
Departure Angle: 48? (Bronco)
                               41? (Defender)
Shock Length (front and rear): 2.0 inches (51mm)
Hex Size: 7mm
Wheels (front and rear): 1.0 x 0.49 inches (25.4 x 12.5mm)
Tires (front and rear): 2.2 x 1.0 inches (57 x 25.4mm)
Electronic Control Module: ECM-2.5?
(Combo ESC, Receiver, Lighting Control*)
Motor (electric): Titan? 180 87T
Differential Type: Fully Locked; 2:1 Axle Ratio

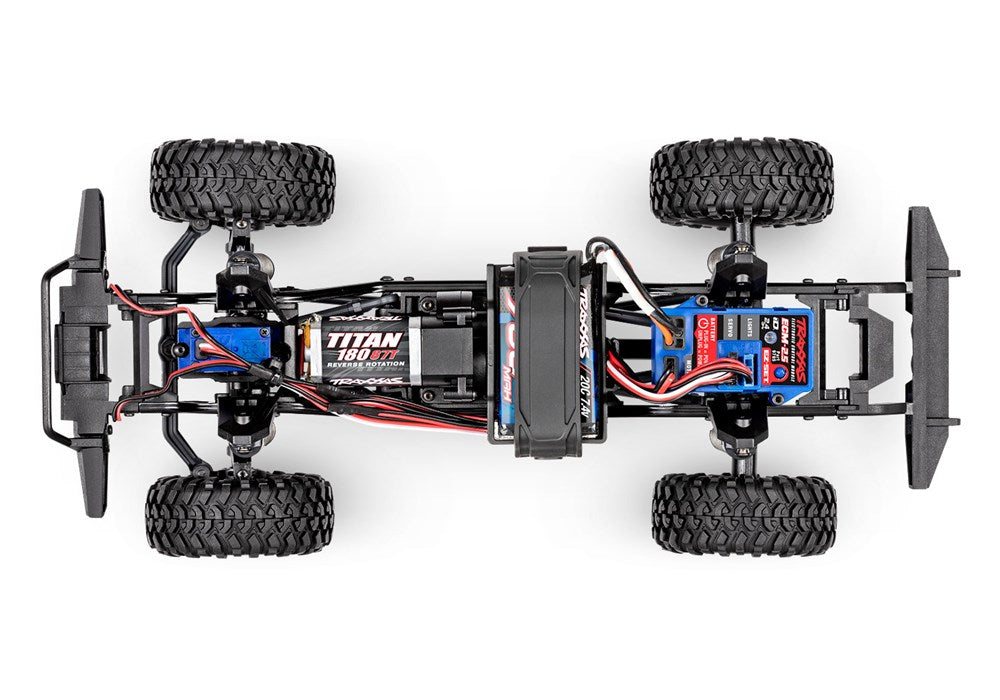

Chassis Structure/Material: Steel Ladder Frame with Nylon Composite Crossmembers
Brake Type: Electronic ?Hill Hold?
Drive System: Shaft-Driven 4WD
Steering: Axle-Mounted Servo
Radio System: TQ? 2.4GHz 2-Channel Transmitter
Servo: #2065T Heavy-Duty Waterproof
Skill Level: 1
Battery Tray: 50.5mm L X 31mm W
*Requires accessory Pro Scale LED Light Kit, sold separately

Batteries & Charger are included, these are the compatible batteries and chargers:

Compatible Lipo Batteries:

• Traxxas 2821 750mAh 7.4V 2-Cell 20C LiPo Battery

Compatible Chargers:

• Traxxas 2970 - Ez-Peak Plus 4-Amp Nimh/Lipo Fast Charger With Id Auto (Requires 2821-PORT)
• Traxxas 2821-PORT charge adapter for TRX4-M lipo battery from ID charger
• Traxxas 9767 Charger, iD Balance, USB (2-cell 7.4 volt LiPo with iD connector only)
